  Fittings

Up

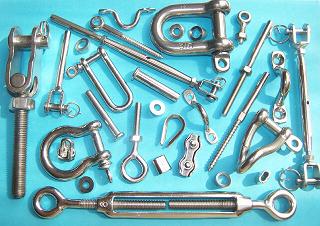

Rope & Cable present the following fittings:

All fittings are G316 grade. These are a sample of our full range. Updates to these pages occur frequently as our product range expands. The pictures are representative only, for full detailed specifications please contact your local Rope & Cable manager.


Swage Terminals

End Stopper Swaged End Stopper
Swage Terminal for 3mm, 3.2mm and 4.0mm Stainless Steel Wire. Timber & Stainless Steel applications, requires hydraulic pressing.
Hex Head Adjuster Hex Head Adjuster
Size Range 5mm – 6mm internal Thread. Timber & Stainless Steel applications. Suitable for most 5mm – 6mm Threaded Swage Terminals.
Swage Terminal Label Swage Thread
Size Range 5mm – 16mm, Suitable for Metric & Imperial Stainless Steel wire From 2.4mm - 8.0mm. Use in-conjunction with Hex Head Adjuster or Dome Nut and washers.
Jaw/Swage Rigging Screw Jaw/Swage Rigging Screw
Size Range 5mm – 16mm, Suitable for Metric & Imperial Stainless Steel Wire From 2.4mm – 8.0mm.
Forked Terminal Swage Fork Terminal
Pin Sizes 5mm – 14mm, Suitable for Metric & Imperial Stainless Steel Wire From 2.4mm – 8.0mm.
Swage Eye Swage Eye
Imperial & Metric Wire Size Range 3.0 – 6.4mm, Hole Size 6.5mm – 12.5mm.
Swage Lag Screw Lag Screw/Swage
6mm Left or Right hand Thread. Suitable for timber applications, Metric & Imperial Stainless Steel Wire From 3.0mm & 3.2mm only.



Turnbuckles

2 x Jaw-Jaw Closed Body Jaw/Jaw Bottlescrew

Size Range 5mm – 12mm.

Eye – eye turnbuckle Eye/Eye Turnbuckle

Size Range 5mm – 16mm.

Threaded Toggle Threaded Toggle

Threaded Toggle 5mm – 16mm sizes.

Threaded Fork

Pin sizes 5mm – 14mm, Thread sizes 5mm – 16mm.






Eyebolts, Screw eyes & Saddles

screw eye Screw Eye

Size Range 6mm – 12.0mm timber applications. Connects to most Turnbuckles and Swage Terminals.
Eye Bolt Mini Mini Eye Bolt

Size Range 6mm x 15mm or 6mm x 22mm Stainless Steel applications. Connects to 5mm & 6mm Turnbuckles and Swage Terminals only.

Eye Bolt Eye Bolt

Size Range 6mm – 12mm with nut & 2 washers timber & Stainless Steel applications. Connects to all Turnbuckles & Swage Terminals.
2 x Saddle Saddle

Size Range 5mm – 8mm Timber & Stainless Steel applications. Connects to Turnbuckles & Swage Terminals from 5mm – 8mm.

Shackles

Shackles mixture

‘D’ Shackle

Size range 6mm - 16mm.
Bow Shackle Bow Shackle

Size range 6mm – 16mm.
‘D’ Shackle Long Long ‘D’ Shackle

 Size range 6mm – 12mm.
twisted shackle
 Twisted Shackle

Size Range 6mm – 12mm.



Swages, Thimbles, Rope Grips, Washers & nuts.


6 x Angled Washers Bevelled Washer

Hole sizes 6.2mm – 8.2mm, Cut at 35 degrees. Applications, Stair Cases & Angles. Used in-conjunction with Swage Thread or Hex Head Adjuster.


3 x Copper Swages Nickel Plated Copper Hand Swages (Ferrules)

Suitable for Stainless Steel Wire Only, size range 1.6mm – 6.4mm. Effective use for 7x19 & 7x7 construction Stainless Steel Wire.

3 x Thimbles Stainless Wire Rope Thimble

Size range 2.0mm – 8.0mm. Must be used to protect the integrity of the wire.


Stainless Wire Rope Grip

Size range 2.0mm – 8.0mm.

Duplex wire clip

Wire size 3.0mm.
Dome Nut

Size range 3.0mm – 8.0mm.
